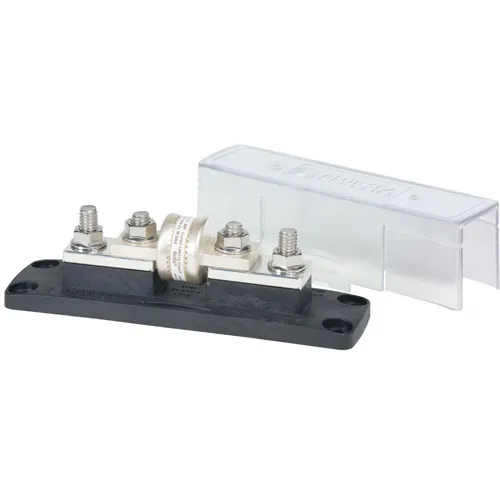

• The fuse system recommended by most inverter manufacturers for high speed response to short circuits
• Clear insulating cover, satisfies ABYC/USCG requirements
• For use on systems up to 160 Volts DC
• Large 3/8"-16 stud terminals accept ring terminals for wire up to 4/0 AWG
• Large heat dissipating tin-plated copper mounting blocks
• Fuse sold separately

  Specifications:
  Ignition Protected: No
  Maximum Amperage: 400A
  Maximum Voltage: 160V DC
  Fuse Mounting Blocks: Tin-Plated Copper
  Maximum Cable Size: 4/0 AWG
  Maximum Torque: 190 in-lb (21.47 Nm)
  Mounting Holes: Accept 1/4 (M6) Screw
  Terminal Stud Size: 3/8" - 16 (M10)
  Weight: 1.10lb (0.5 kg)
